Exceptional Tensile Strength:
Ultra-high modulus flat wire weaving delivers ≥100 kN/m tensile strength (MD/XD)
Low elongation (<5% at working load) for precise structural control
Advanced Durability:
UV-stabilized polypropylene/polyester for 50+ year service life
Resists creep under continuous load (≤2% strain @ 20% MRS)
Introduction:

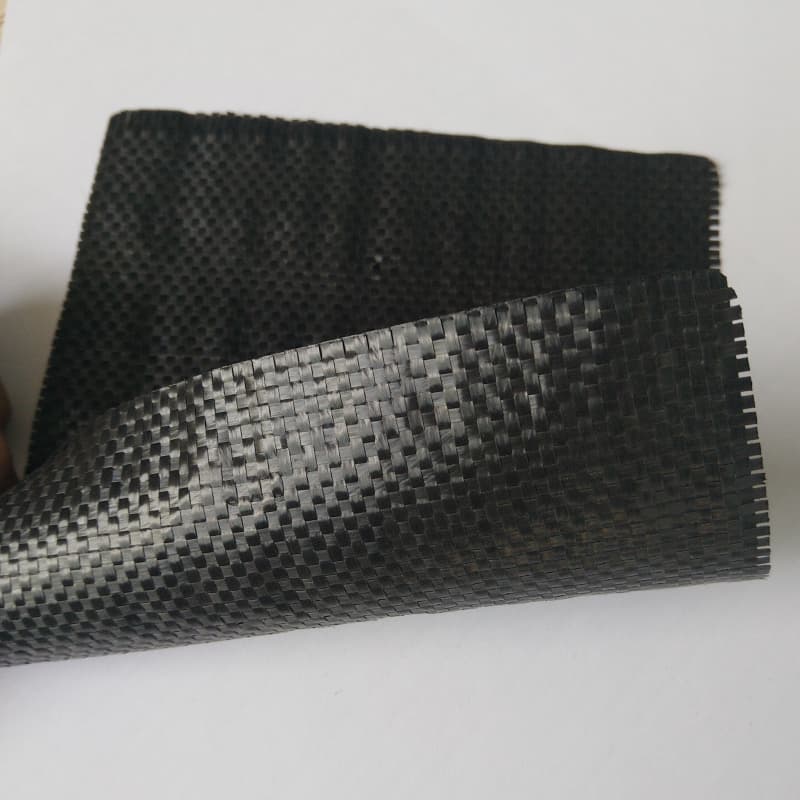

Our High-Strength Flat Wire Woven Geotextile is a premium-grade reinforcement solution manufactured through precision flat wire weaving technology. Designed for critical civil engineering applications, this geotextile combines exceptional tensile strength with optimal soil interaction, outperforming traditional woven and nonwoven alternatives in long-term stability and load distribution.
Key Features
1. Ultra-High Tensile Strength:
≥100 kN/m tensile capacity (MD/XD, ISO 10319)
Low elongation (<5% at working load) for precise structural control
2. Advanced Weave Technology:
Interlocked flat wire construction (0.8-2.0mm thickness)
Controlled aperture size (5-20mm) for balanced drainage/filtration
3. Material Excellence:
UV-stabilized polypropylene/polyester
Additive package for:
Oxidation resistance
Chemical inertness (pH 2-13)
4. Installation Advantages:
Lay-flat design prevents curling during deployment
Pre-cut panels available for rapid installation
50% lighter than equivalent steel reinforcement
Technical Specification:
Parameter | Specification | Test Standard |
Material | High-Density PP/PET | ISO 10318 |
Tensile Strength | ≥ 100/90 kN/m (MD/XD) | ISO 10319 |
Aperture Stability | ≤ 3% deformation @ 20kN | EN ISO 12236 |
UV Resistance | 70% strength after 5,000 hrs | ISO 4892 |
Applications
Steep slope reinforcement (1:1 gradients)
Landfill base stabilization
Coastal/offshore erosion control
Railway/highway subgrade improvement
Quality Assurance
ISO 9001:2015 certified production
100% automated optical inspection for weave consistency
Third-party validated (SGS, TÜV, CE Mark)
Why Choose This Product?
Proven in 300+ heavy civil projects globally
Custom weave patterns/apertures for project-specific needs
Complete technical support including:
Finite element modeling
Interface friction testing
About Us
As a specialized manufacturer of high-performance geosynthetics, we focus on engineering innovative reinforcement solutions, including our flagship High-Strength Flat Wire Woven Geotextile. With ISO 9001-certified production facilities and 20+ years of textile engineering expertise, we deliver reliable, high-tech solutions for critical infrastructure projects worldwide.
