Patented Anti-Clogging Technology:
Multi-stage filtration design reduces sediment intake by 90%
Self-cleaning flow channels maintain >95% original permeability after 10 years
Engineered Hydraulic Performance:
Sustained flow rate ≥5000L/min/m² under 300kPa load (ASTM D4716)
3D spacer core with 98% void volume for unimpeded water movement
Introduction:

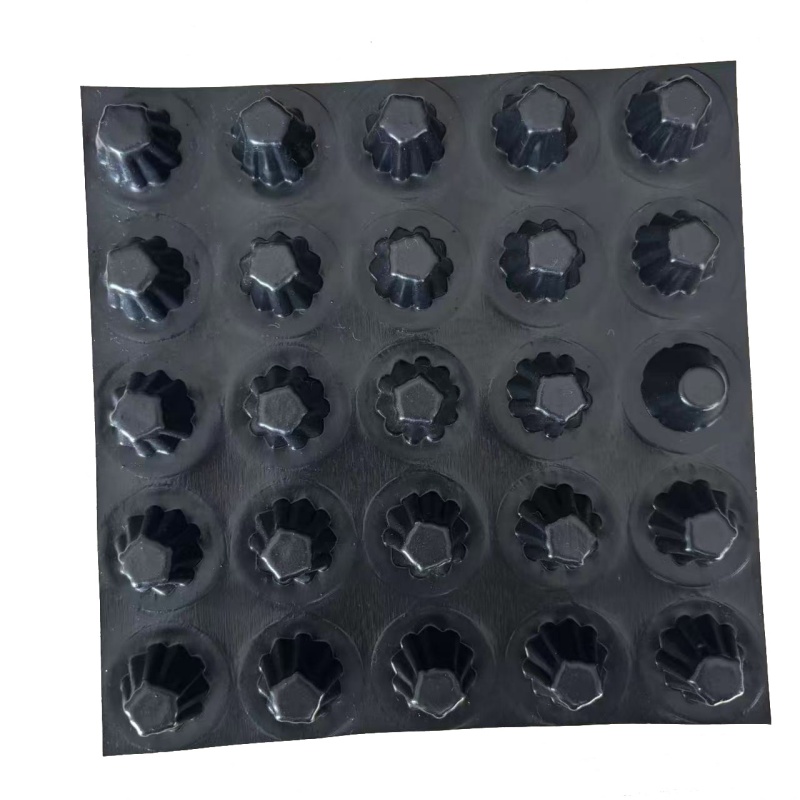

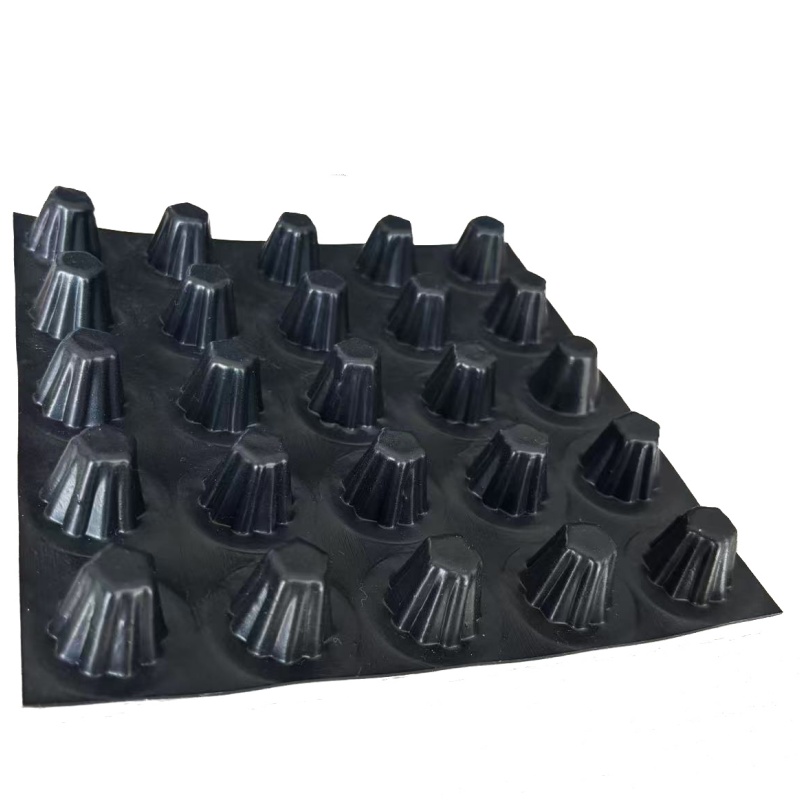

Our Anti-Clogging System Drainage Board is an engineered geocomposite designed to maintain long-term drainage efficiency in demanding environments. Combining a high-flow 3D core with smart filtration technology, this system actively prevents sediment accumulation while delivering unmatched hydraulic performance for critical infrastructure projects.
Key Features
1. Patented Anti-Clogging Design:
Multi-stage filtration (geotextile + nano-coated channels) reduces clogging risk by 90%
Self-cleaning flow paths maintain >95% permeability after 10+ years of service
2. Optimized Hydraulic Performance:
Sustained flow rate: 5000-8000L/min/m² (ASTM D4716 verified)
98% void ratio core structure prevents flow restriction
3. Durable Construction:
UV-stabilized HDPE core retains strength in exposed applications
Reinforced nonwoven geotextile (200-400g/m²) with O₉₀ ≤100μm
4. Easy Installation:
Modular panels (up to 4m wide) minimize seams
50% lighter than aggregate systems
Interlocking edges for rapid deployment
5. Certified Reliability:
10-year zero-clogging warranty
LEED credit documentation available
FM Global approved for industrial use
Technical Specifications:
Parameter | Specification | Test Standard |
Core Thickness | 10/15/20/25mm | ASTM D5199 |
Compression Strength | 200-800kPa | ASTM D1621 |
Geotextile Type | Needle-punched PET/PP | ISO 10320 |
Roll Dimensions | 2-4m x 20-50m | - |
Applications:
Landfill leachate collection systems
Contaminated land remediation
Green roof & blue roof assemblies
Tunnel drainage layers
Mining heap leach pads
Why Choose This System?
Proven in 75+ projects with zero clogging failures
Customizable filtration levels (50-150μm)
Complete technical support including:
Clogging potential analysis
Hydraulic modeling
Installation supervision
About Us:
We are a leading manufacturer of high-performance geosynthetic drainage systems, specializing in anti-clogging technology for critical infrastructure projects. With ISO 9001-certified production facilities and 15+ years of hydraulic engineering expertise, we develop intelligent drainage solutions that outperform traditional methods in long-term reliability and maintenance reduction.
