1. Exceptional Tensile Strength & Durability:
Made from a hundred percent virgin polyester (PET) filaments, imparting ultimate tensile electricity (≥25kN/m) to stand up to heavy hundreds in roadbeds, embankments, and landfills.
High puncture resistance (CBR ≥3,500N) prevents injury from sharp rocks and building debris.
2. Superior Filtration & Drainage Performance:
Needle-punched shape ensures top-quality permittivity (≥0.02 s⁻¹), permitting environment friendly water waft whilst preserving great soil particles.
Prevents clogging and keeps long-term drainage effectivity in leachate series structures and erosion manage applications.
3. UV & Chemical Resistance for Longevity:
UV-stabilized to preserve ≥70% energy after five hundred hours of daylight publicity (ISO 4892).
Resistant to alkalis, acids, and microorganisms (pH 2–13), making sure balance in harsh environments like mining and wastewater treatment.
Introduction:

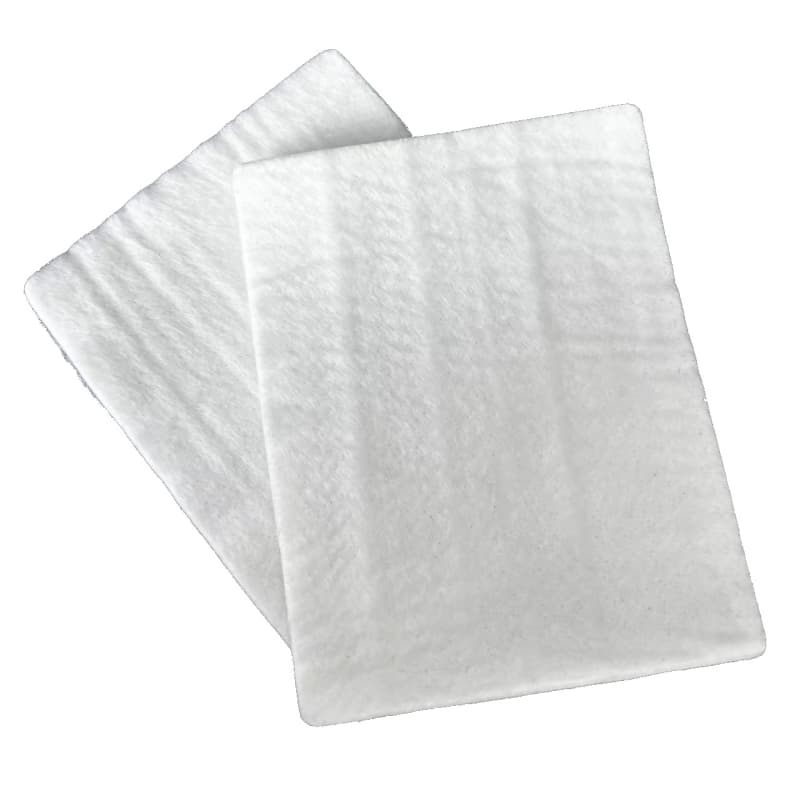

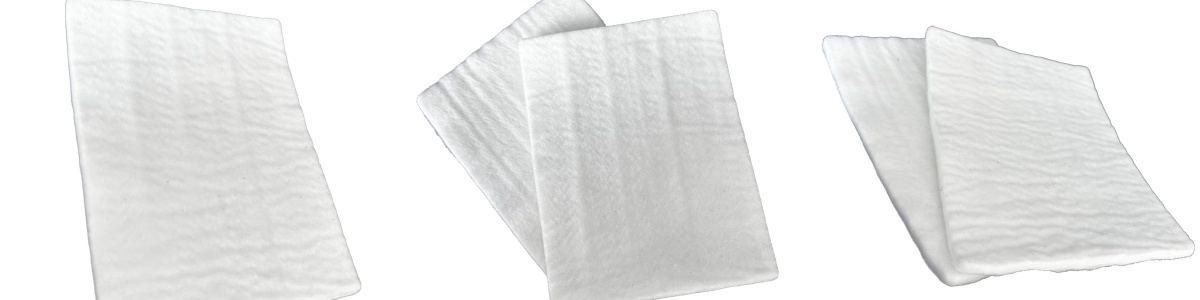

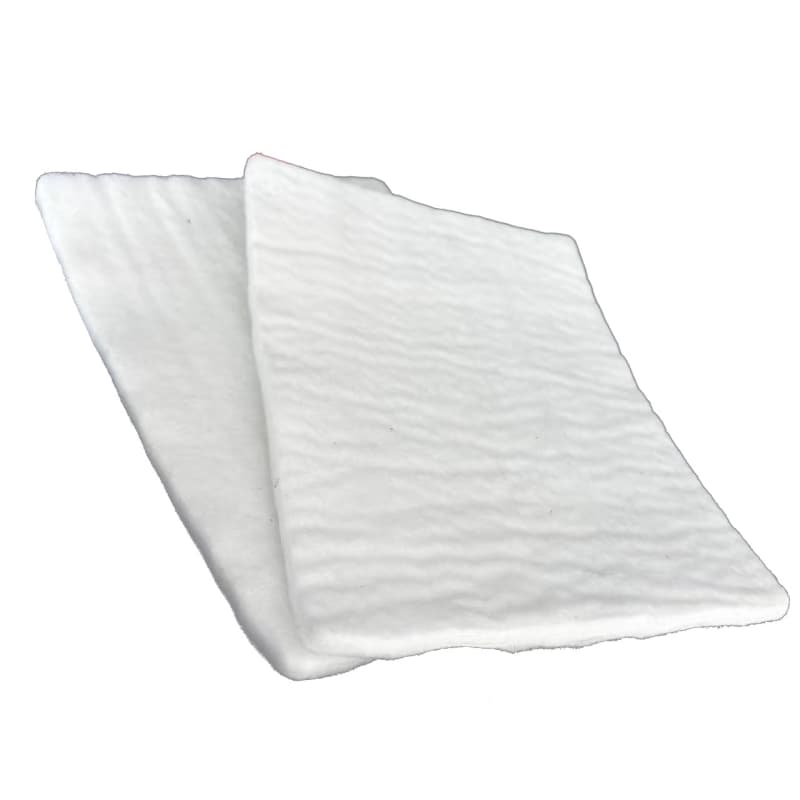

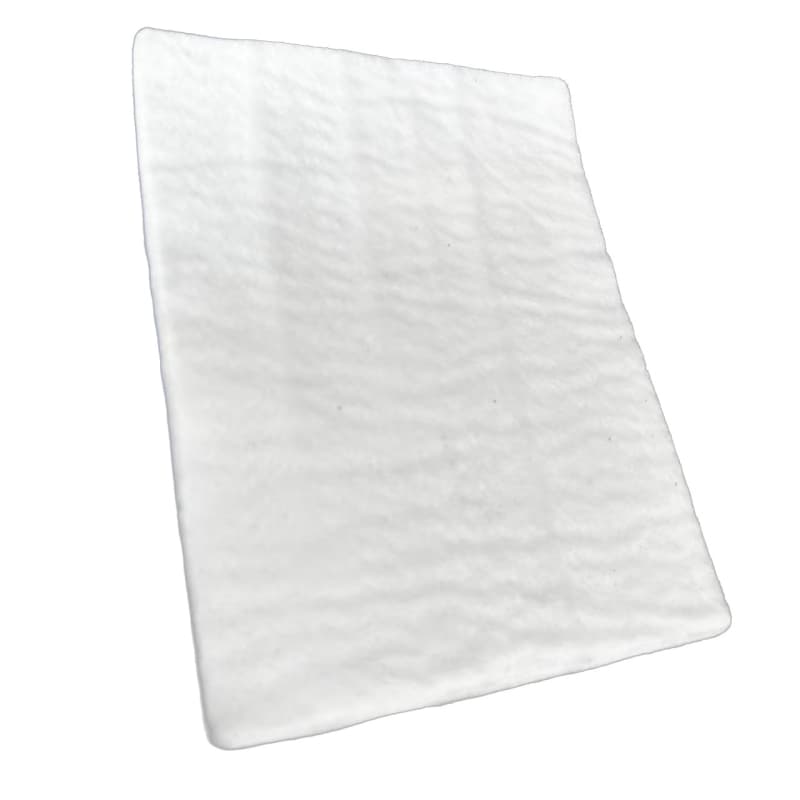

Our 600g/m² PET Filament Non-Woven Geotextile is engineered for worrying civil engineering applications, supplying greatest puncture resistance, tensile strength, and filtration performance. Made from one hundred percent virgin polyester (PET) filaments via needle-punching technology, this heavy-duty geotextile offers fantastic load distribution, soil separation, and drainage enhancement in infrastructure projects. With a UV-stabilized sketch and resistance to organic degradation, it ensures long-term sturdiness in uncovered environments.
Key Advantages
Reinforcement & Stability: Distributes masses evenly to forestall subsidence in roadbeds, railways, and embankments.
Filtration Efficiency: Retains excellent soil particles whilst permitting water passage (permittivity ≥0.02 s⁻¹).
Tear & Puncture Resistance: Withstands developing stresses (CBR puncture ≥3,500N).
Chemical Resistance: Inert to alkalis, acids, and soil microorganisms (pH steadiness range: 2–13).
Eco-Friendly: Recyclable PET cloth with ROHS compliance.

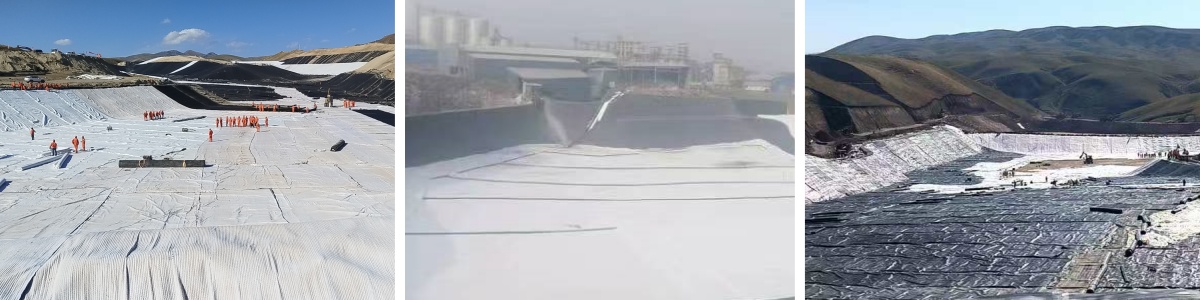

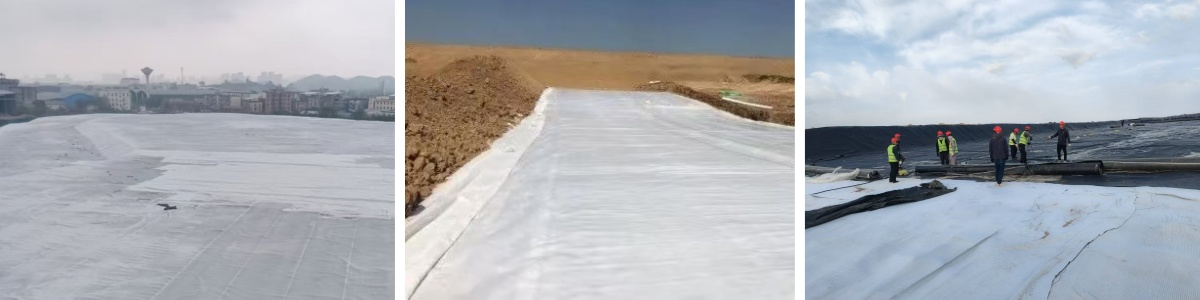

Applications
Road & Railway Subgrade Stabilization
Landfill Drainage Layers & Leachate Collection
Coastal & Riverbank Erosion Control
Retaining Wall Backfill Protection
Technical Specifications
| Parameter | Value |
| Weight | 600g/m² (±5%) |
| Thickness | ≥4.5mm (under 2kPa) |
| Tensile Strength (MD/XD) | ≥25kN/m |
| Elongation at Break | 50–100% |
| CBR Puncture | ≥3,500N |
| Permittivity | (Ψ) ≥0.02 s⁻¹ |
| UV Resistance | ≥70% retained strength after 500hrs (ISO 4892) |
| Roll Dimensions | 6m×50m (custom widths available) |
Packaging & Logistics
Roll Core: 76mm/152mm hard plastic tubes
Wrapping: UV-protective film + woven PP straps
Loading: 20 rolls per 20ft container (~6,000m²)
Why Choose Our Geotextile?
Factory Direct: ISO 9001-certified production with 10,000㎡/day capacity.
Global Standards: Complies with ASTM D6241, EN 13249, GB/T 17639.
Project Support: Free technical drawings for slope reinforcement & drainage designs.

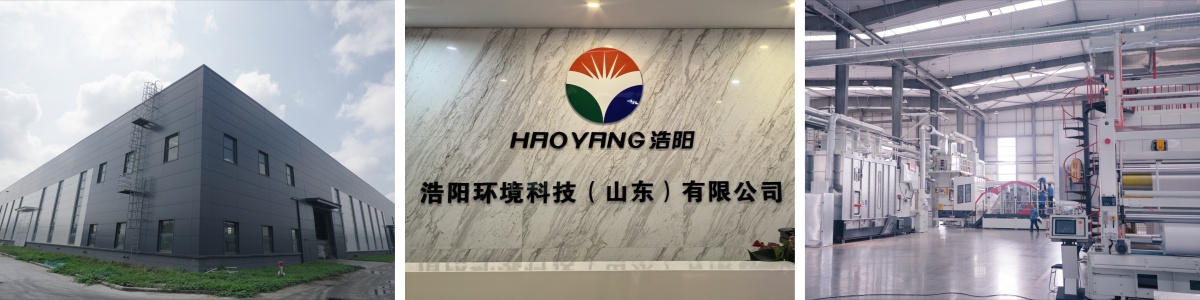

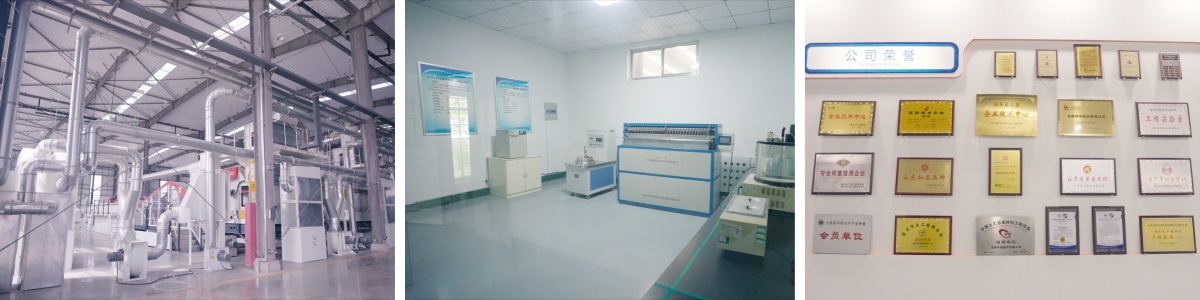

Company's Strength:
As a important producer and exporter of geosynthetic materials, we specialize in producing pinnacle classification PET filament non-woven geotextiles, HDPE geomembranes, and composite drainage merchandise for international infrastructure projects. With 20+ years of enterprise expertise, our ISO 9001, ISO 14001, and OHSAS 18001 licensed manufacturing facility spans 80,000㎡ and elements definitely computerized needle-punching manufacturing traces succesful of producing 15,000㎡ of 600g/m² PET geotextile daily.
