Equal Strength: Provides balanced load distribution in both directions (20-50kN/m)
Long-Lasting: UV & chemical resistant for 50+ year service life
Soil Locking: 3D structure reduces aggregate needs by 30-50%
Easy Install: Lightweight rolls deploy quickly with minimal labor
Introduction:

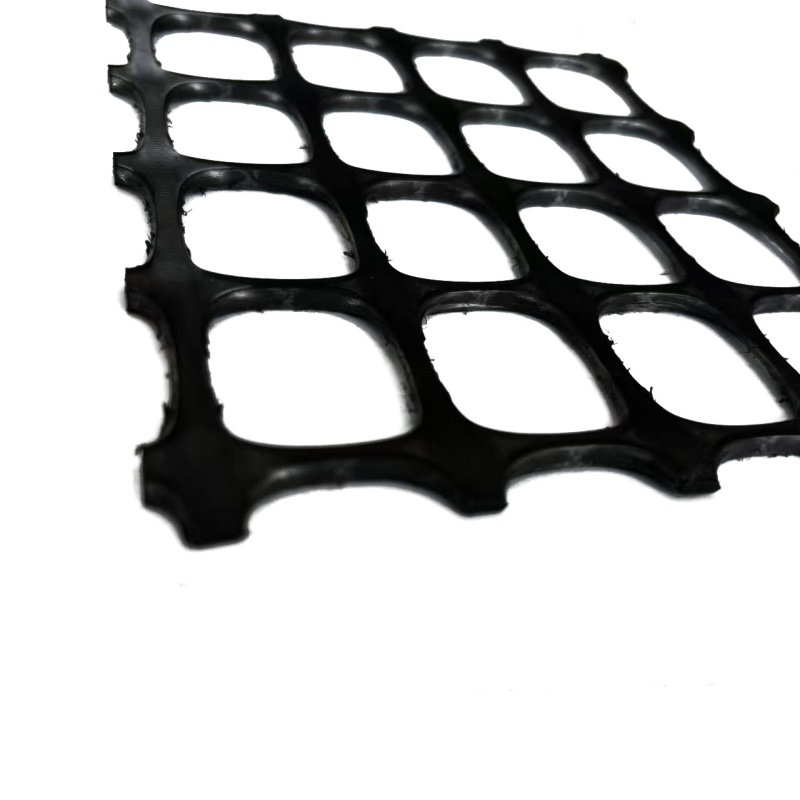

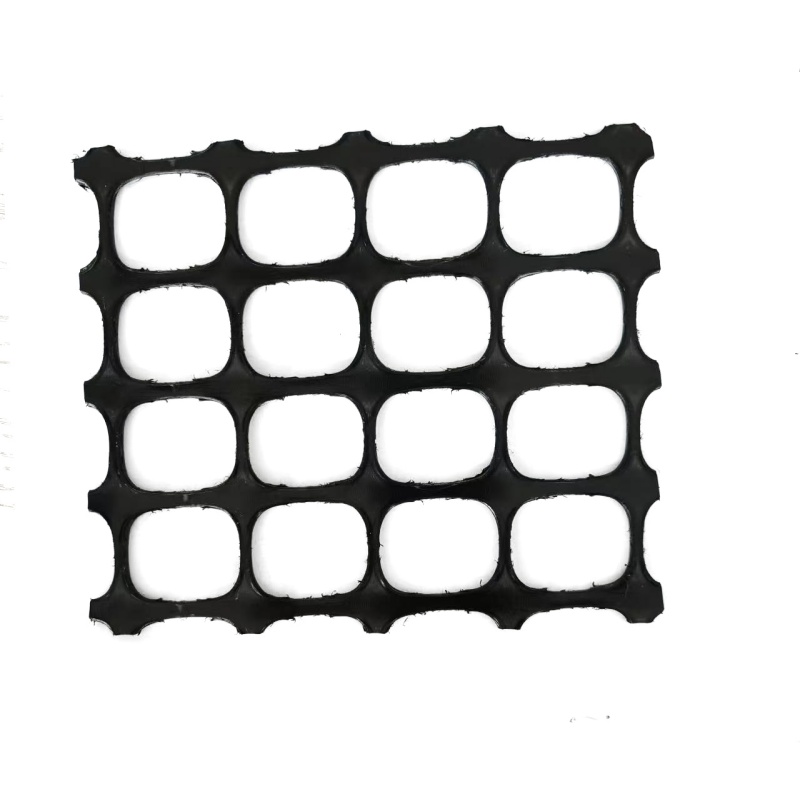

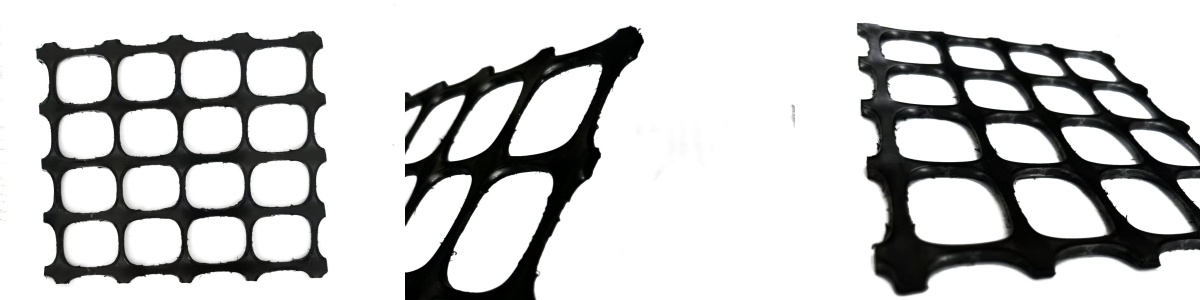

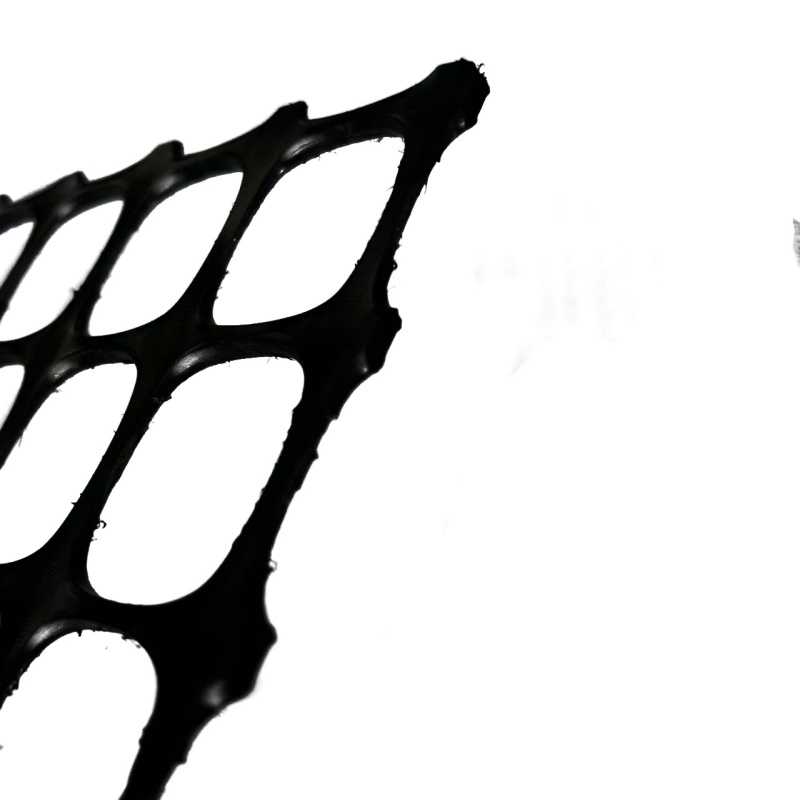

Our HDPE Biaxial Geogrid is an advanced geosynthetic material engineered for superior soil reinforcement and stabilization. Manufactured from high-density polyethylene (HDPE) through precise punching and stretching processes, this geogrid delivers exceptional performance in civil engineering and construction applications.
Key Features:
Bidirectional Strength: Provides equal tensile strength in both machine and cross-machine directions (15-50kN/m)
Excellent Durability: UV-stabilized HDPE material resists chemical and biological degradation
Optimal Soil Interaction: Unique aperture design (25-40mm) ensures maximum interlock with fill materials
Cost-Effective: Reduces aggregate requirements by 30-50% compared to traditional methods
Easy Installation: Lightweight rolls enable quick deployment with minimal labor
Technical Specifications:
Material: Virgin HDPE with carbon black
Aperture Sizes: 25mm, 30mm, 40mm (standard)
Roll Dimensions: 2-6m width × 50-100m length
Tensile Strength: 15kN/m to 50kN/m (ASTM D6637)
Temperature Range: -40°C to 60°C

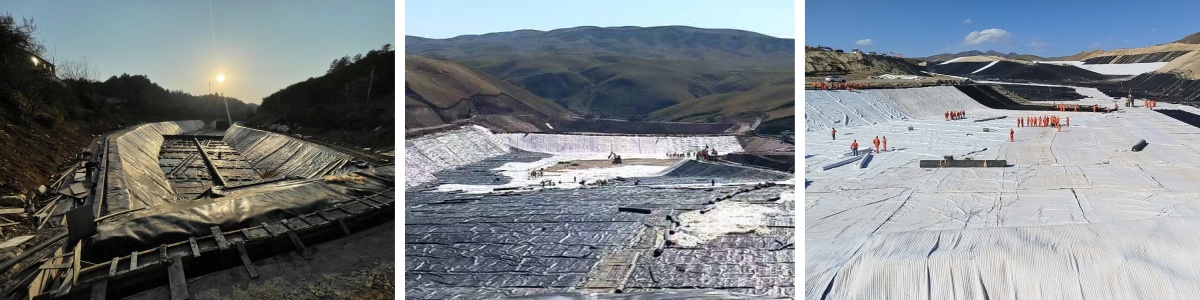

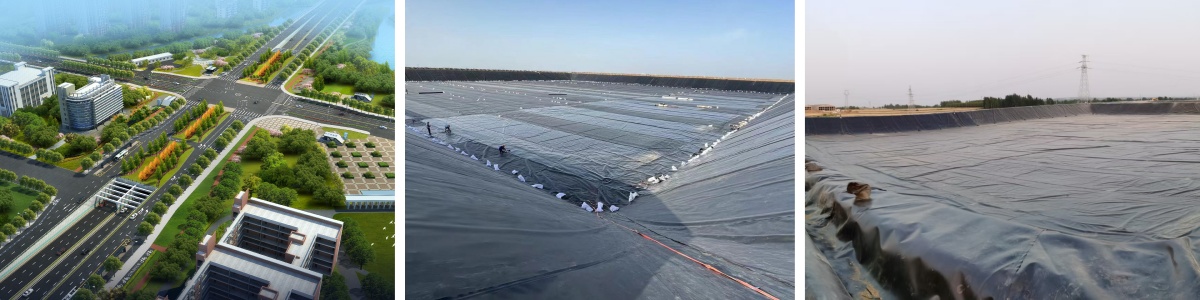

Primary Applications:
Road and railway base reinforcement
Retaining wall and slope stabilization
Landfill liner protection systems
Port and airport runway construction
Industrial yard and parking lot foundations
Why Choose Our Product?
Manufactured with strict quality control (ISO 9001 certified)
Custom sizes and strengths available
Global project experience
Technical support available
Package & Delivery:
Standard packaging: Plastic wrapped on wooden pallets
Container loading: 20-25 pallets per 40HQ container
Delivery time: 15-20 days after order confirmation

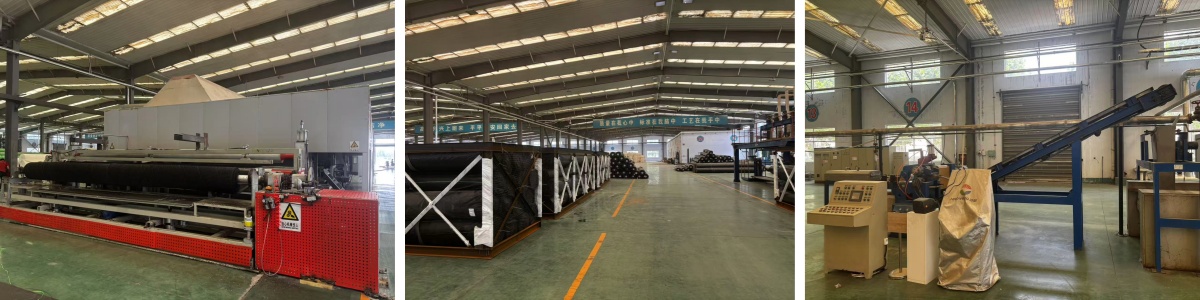

Company's Strength:
Haoyang Geosynthetics is a leading manufacturer and global supplier of premium geosynthetic solutions, specializing in HDPE biaxial geogrids for soil reinforcement and stabilization applications. Established in 2008 with our headquarters and manufacturing facilities in Shandong, China, we have grown to become a trusted partner for civil engineering projects worldwide.
