Efficient Water Management – Dimpled design for rapid water removal and pressure relief.
UV-Resistant Formulation – Enhanced protection against sunlight degradation.
Easy Installation – Interlocking system for quick deployment and full coverage.
Eco-Friendly Material – Sustainable, recyclable construction with low environmental impact.
Long-Term Durability – Resists deformation under continuous load conditions.
Product Introduction:

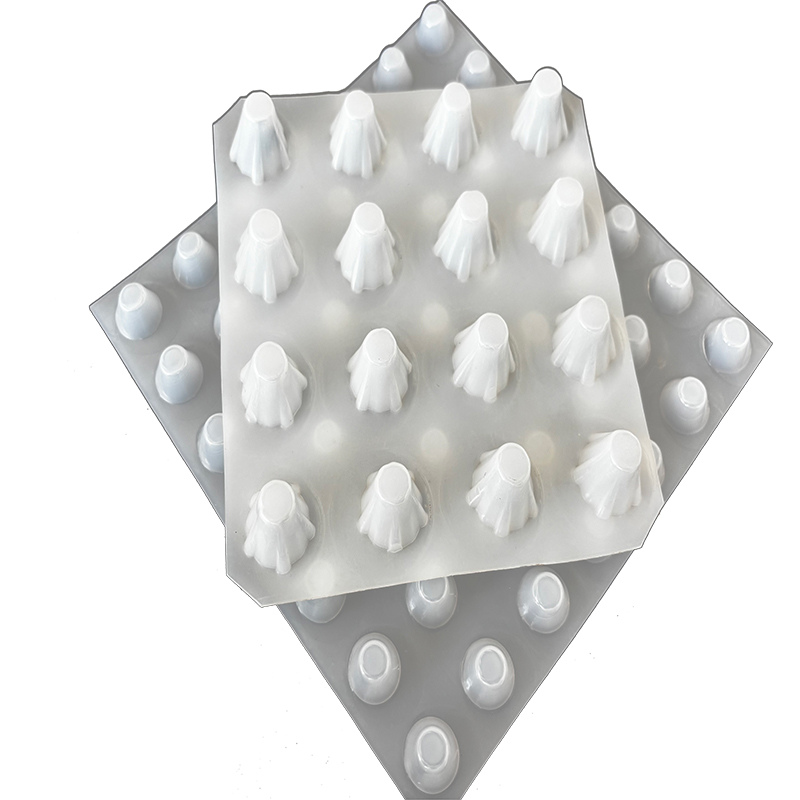

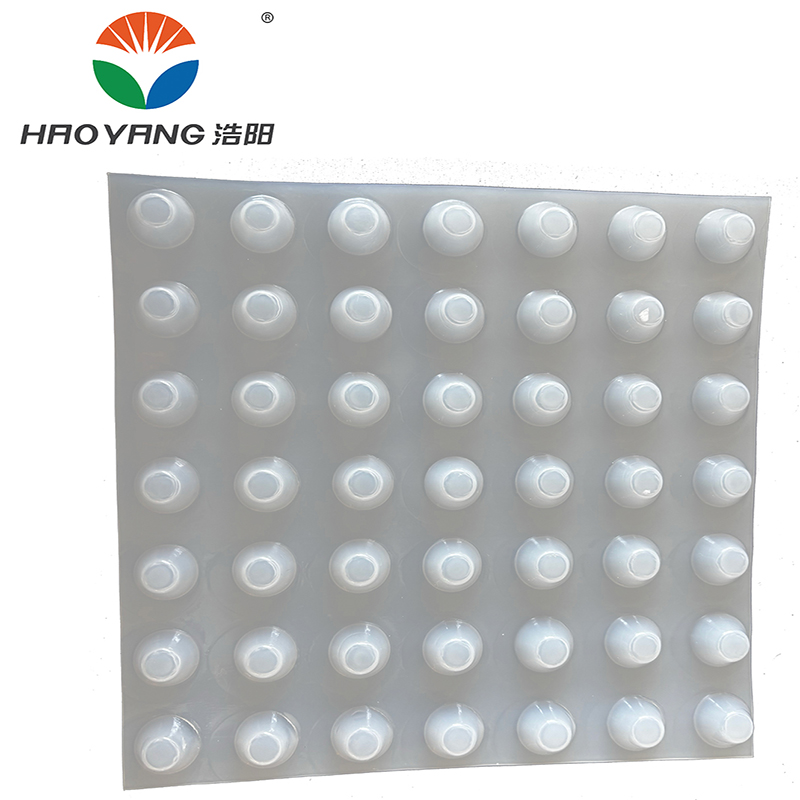

Drainage board, made of HDPE or PP, is lightweight, corrosion-resistant, and highly durable. Its dimpled design ensures efficient water drainage, preventing accumulation. Ideal for basements, green roofs, tunnels, and sports fields, it is easy to install and offers long-lasting performance, making it a top choice for drainage systems.
Product Features:
1. Durability: Enhances the longevity of building structures by combining waterproofing and drainage.
2. Modern Waterproofing System: Uses flexible waterproofing materials to achieve complete impermeability, with the ability to channel water and prevent seepage.
3. Four-in-One Functionality: Combines prevention, drainage, interception, and blocking to meet modern construction requirements.

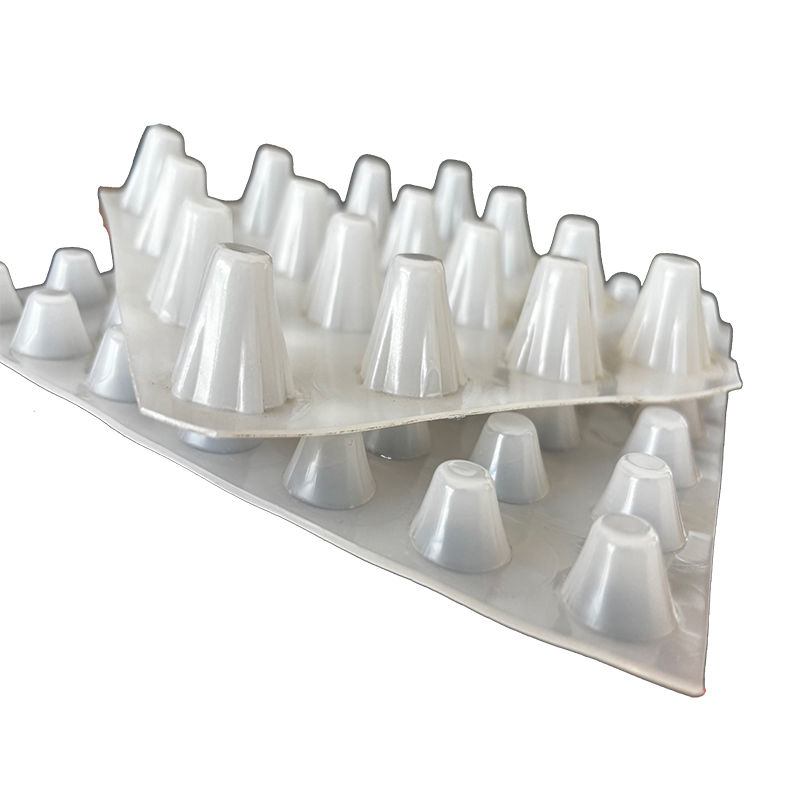

4. Efficient Filtration: The conical protruding platform is covered with a filtering geotextile to prevent soil particles from clogging the drainage channels.
5. Cost and Energy Savings: Replaces traditional cobblestone or gravel filtration layers, reducing construction time, labor, and costs while minimizing building load.
Product Applications:
Roof Gardens and Green Roofs - Ensures effective drainage for roof gardens and outdoor garage green roofs.
Retaining Walls - Provide drainage and prevent water accumulation behind retaining walls.
Basements - Manages water drainage in basements to prevent flooding and moisture issues.
Tunnels and Subways - Ensures proper drainage in tunnels, subways, and foundation works.
Slope Protection - Protects slopes from erosion and water damage.
Highway Roadbeds - Prevents water accumulation and enhances stability in highway roadbeds.
Product Parameters:
| HXHP-103 | HXHP-104 | HXHP-105 | HXHP-106 | HXHP=107(Ⅰ) | HXHP=107(Ⅱ) | HXHP-108 | HXHP-109 | |
| Color Floor | Black/White | Black/White | Black/White | Black/White | Black/White | Black/White | Black/White | Black/White |
| Material | (HIPS) | |||||||
| Quality(g/m2) | 760 | 820 | 3600 | 1000 | 1100 | 1200 | 1300 | 1600 |
| Thickness(mm) | Single10 | Duplex18 | njeotion 18 | Single20 | Single25 | Duplex25 | Single30 | Single40 |
| Anti-pression | 400 | 200 | 1200 | 320 | 260 | 200 | 280 | 260 |
| strength(kpa) | ||||||||
| Geotextile | Black/White | Black/White | Black/White | Black/White | Black/White | Black/White | Black/White | Black/White |
| color filter layer | ||||||||
| Material | Polypropylene and polyester | |||||||
| Pore diameter | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 |
| (mm) | ||||||||
| Water | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 |
| Te lile | 278 | 278 | 278 | 278 | 278 | 278 | 278 | 278 |
| Strength (N) | ||||||||
| Qualityemb(g/m2) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
| Drainae | 1.2×16.6m | 1.2×16.6m | 336×336m | 1.2×16.6m | 1.2×16.6m | 1.2×16.6m | 1.2×16.6m | 1.2×16.6m |
| Board specifications | ||||||||
| Flow(L/S) | Tongji University hydraulic laboratory testing | |||||||
| Head loss 5om | 1.6 | 2.4 | 3.5 | 2.9 | 3.2 | 3.2 | 4.2 | 4.6 |
| Had los | 2.2 | 3.2 | 5.2 | 4.2 | 4.6 | |||
| Deduotiong 10 om | ||||||||

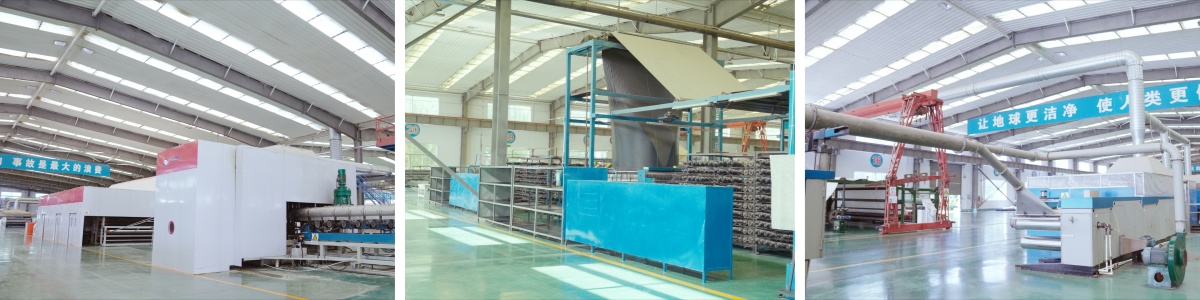

Business Strength:
Haoyang Environmental Technology (Shandong) Co., Ltd. is a trusted supplier of geosynthetic clay liners (GCLs) and custom geomembranes, catering to industries such as waste management, aquaculture, and oil & gas. Its products are known for their exceptional impermeability and resistance to harsh environmental conditions.
