Industry-Leading Flow Capacity
Tri-planar cuspated core design delivers 5000+ L/min/m² flow rates
98% void ratio maintains consistent performance under long-term loading
Engineered Structural Integrity
800kPa compressive strength versions available for heavy civil works
<5% thickness deformation under continuous load (ASTM D1621)
Material Science Innovation
UV8-stabilized HDPE/PP formulations for 25+ year service life
Antimicrobial additives prevent biological clogging in leachate systems
Introduction:

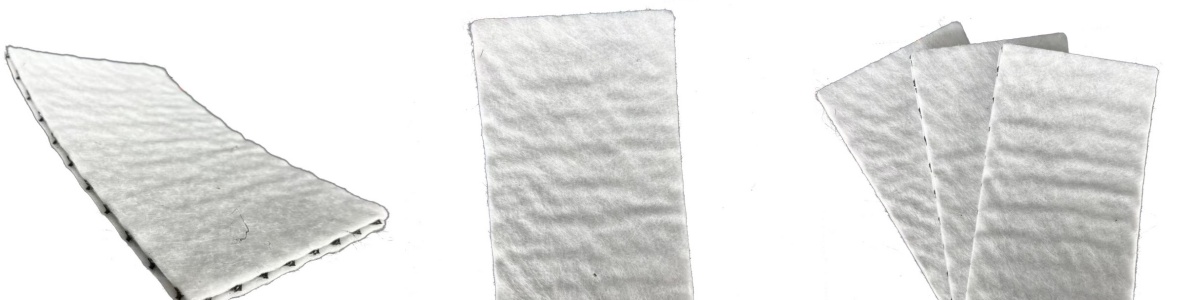

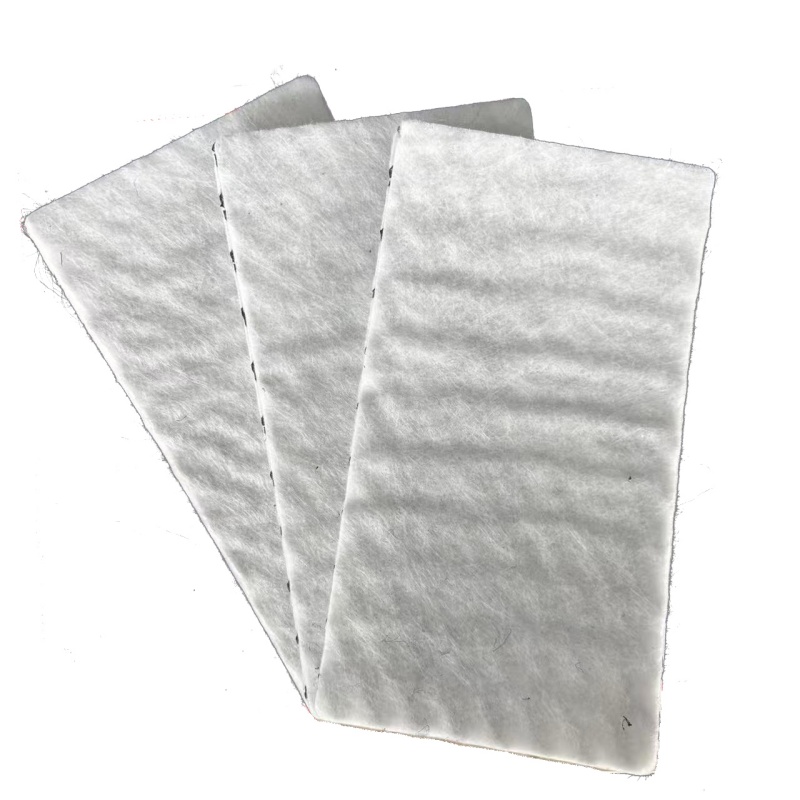

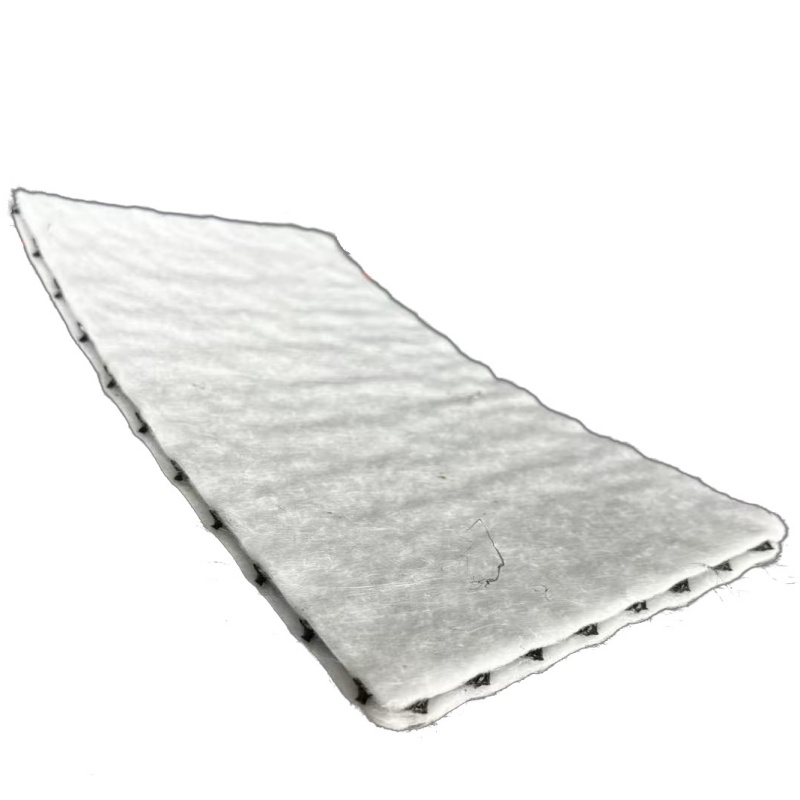

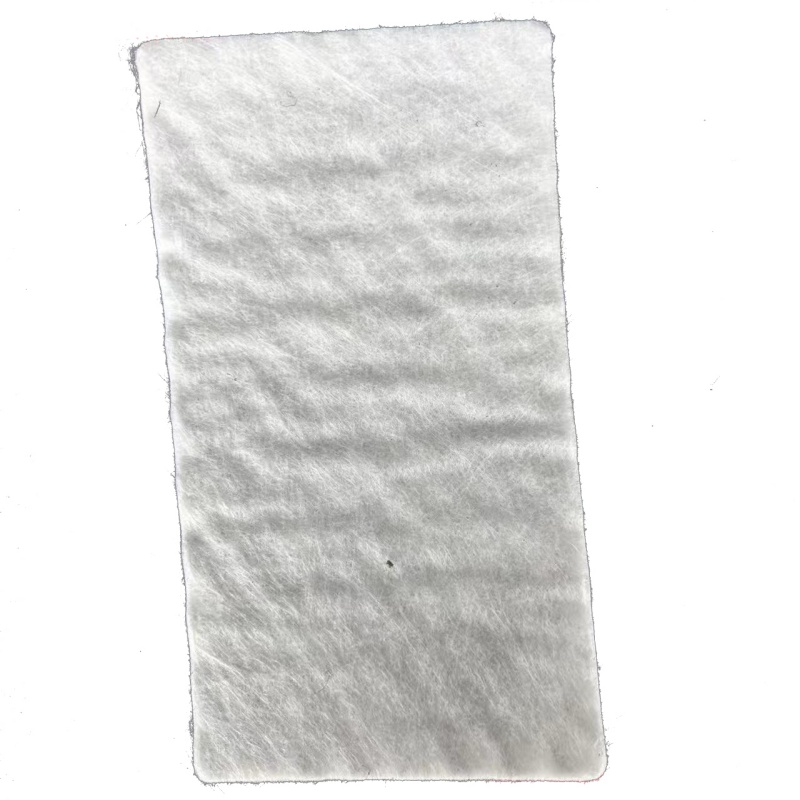

Our High-Flow Geonet Drainage Layer is an engineered three-dimensional polymer drainage core designed for maximum hydraulic conductivity in demanding civil and environmental applications. Manufactured from virgin HDPE/PP resins, this geosynthetic product features a patented tri-planar structure that outperforms traditional drainage aggregates in both flow capacity and long-term reliability.
Core Technology:
Triangular core design creates optimized flow channels (99% void space)
Dual-directional ribs provide structural stability while maintaining flow paths
UV-stabilized formulation with 2-3% carbon black for outdoor durability
Performance Advantages
1. Superior Hydraulic Capacity:
10X faster drainage compared to gravel layers
Zero clogging with proper geotextile pairing
2. Structural Reliability:
Maintains 95% thickness under 500kPa load
Creep-resistant design for long-term performance
3. Installation Benefits:
75% lighter than aggregate systems
50% faster installation with interlocking edges
No heavy equipment required
Technical Specification:
Parameter | Specification | Test Standard |
Flow Rate | Up to 5000L/min/m | ASTM D4716 |
Compressive Strength | 200-800kPa | ASTM D1621 |
Thickness | 6-25mm (standard) | ASTM D5199 |
Roll Dimensions | 2-4m width x 20-50m length | - |
Temperature Range | -40°C to 80°C | ISO 13438 |

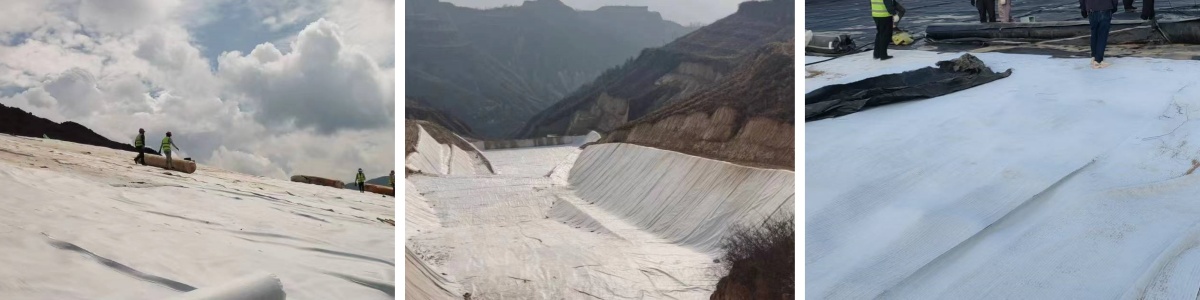

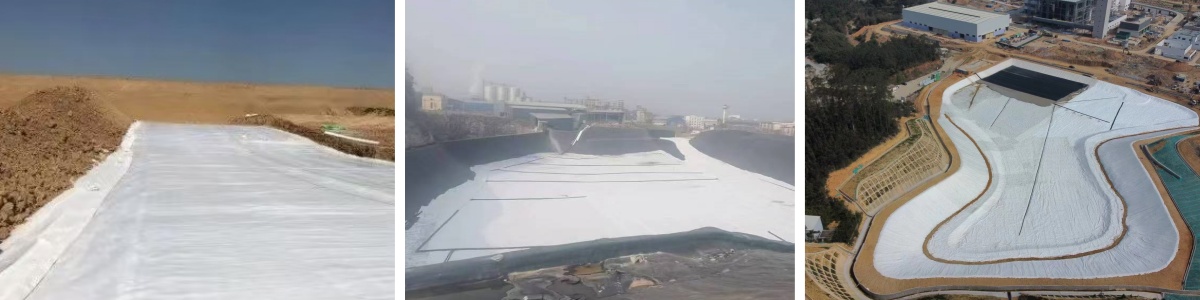

Premium Applications:
Landfill leachate collection systems
Green roof and plaza deck drainage
Retaining wall drainage layers
Tunnel and basement waterproofing
Sports field subsurface drainage
Quality Assurance
ISO 9001:2015 certified manufacturing
GRI-GN8 compliant
Third-party tested (SGS, TÜV, Bureau Veritas)
10-year performance warranty
Customization Options
Core thickness: 6mm (standard) to 25mm (heavy-duty)
Geotextile combinations: Needlepunched/thermal bonded
Specialty versions: Conductive, root-resistant, high-pH resistant
Why Engineers Specify Our Geonet
Proven in 100+ major projects worldwide
Custom hydraulic calculations available
Technical support from design to installation
Global stock for urgent project needs

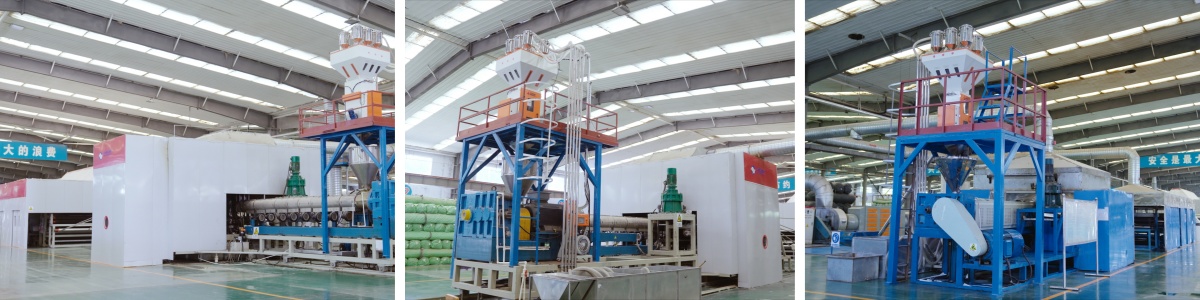

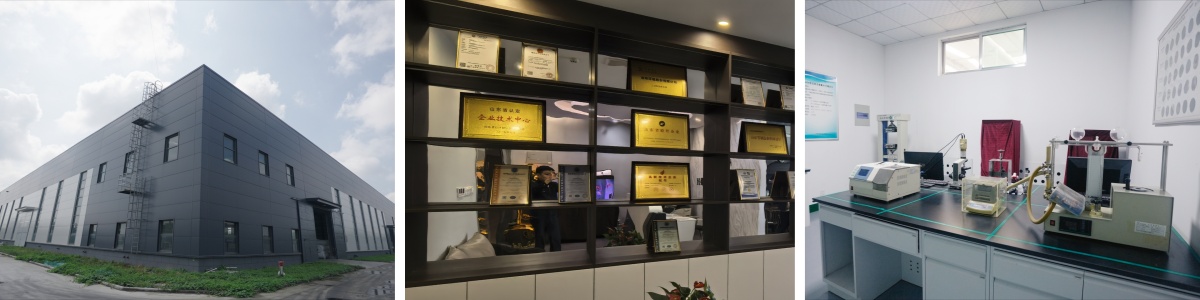

Company's Strength:
As a specialized manufacturer of high-performance drainage geosynthetics, we focus on engineering premium Geonet drainage systems for critical infrastructure projects worldwide. With 15+ years of technical expertise, we combine advanced polymer science with precision manufacturing to deliver reliable drainage solutions that outperform traditional methods.
