Enhanced Slope Stability
One-side textured surface provides ≥0.5 friction coefficient
40% better interface shear strength vs smooth geomembranes
Engineered Durability
2.0mm thickness delivers 500N+ puncture resistance
UV-stabilized HDPE with 3% carbon black for 20+ year service life
Chemical Resistance
Resists landfill leachates, acids, and hydrocarbons (pH 1-14 stable)
-60°C to 80°C operational range
Introduction:

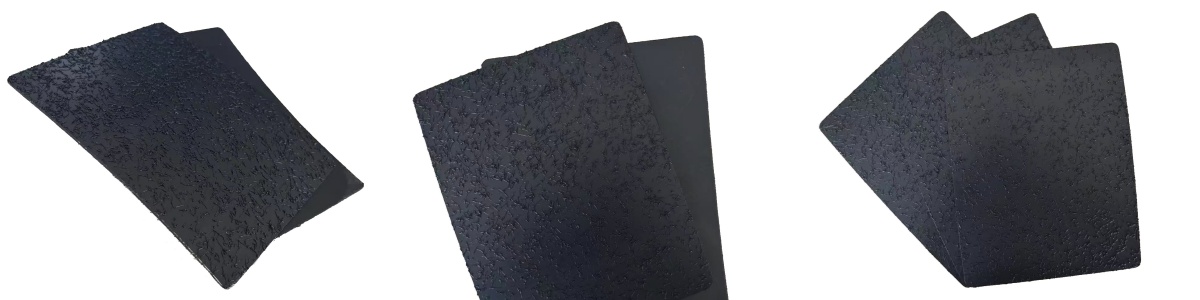

Our 2.0mm Single Textured HDPE Geomembrane features a one-side textured surface engineered for superior slope stability and containment performance. Manufactured from virgin high-density polyethylene with 3% carbon black, this geomembrane combines exceptional friction properties with long-term durability for demanding environmental applications.
Key Features
1. Advanced Surface Technology:
Embossed textured surface provides ≥0.5 coefficient of friction
Smooth underside ensures optimal welding performance
Engineered Strength:
2.0mm thickness delivers 500N+ puncture resistance
Tensile strength ≥30/27 kN/m (MD/XD)
700% elongation for ground settlement accommodation
3. Environmental Resistance:
UV-stabilized for 20+ year outdoor service life
Chemical resistant to pH 1-14 environments
Operates from -60°C to 80°C
Technical Specifications:
Parameter | Value | Test Standard |
Thickness | 2.0mm (±0.15mm) | ASTM D5199 |
Density | ≥0.940 g/cm³ | ASTM D1505 |
Carbon Black Content | 2.5-3.0% | ASTM D1603 |
Permeability | <1×10⁻¹³ cm/s | ASTM E96 |
Installation Advantages:
Textured side up enhances slope stability
Smooth side down facilitates dual-track welding
30% faster deployment vs double-textured membranes
Premium Applications:
Landfill caps & side slopes
Mining heap leach pads
Reservoir lining systems
Wastewater lagoon covers
Quality Assurance:
GRI-GM13 compliant
NSF/ANSI 61 certified for potable water
Third-party tested (SGS/TÜV)
Packaging Options:
Standard rolls: 3m/5m/7m width × 50m/100m length
Custom widths up to 8m available
Heavy-duty steel cores (76mm/152mm)
Why Choose This Product?
Proven performance in 100+ slope projects
Technical support for welding procedures
Global logistics network for timely delivery
About Us:

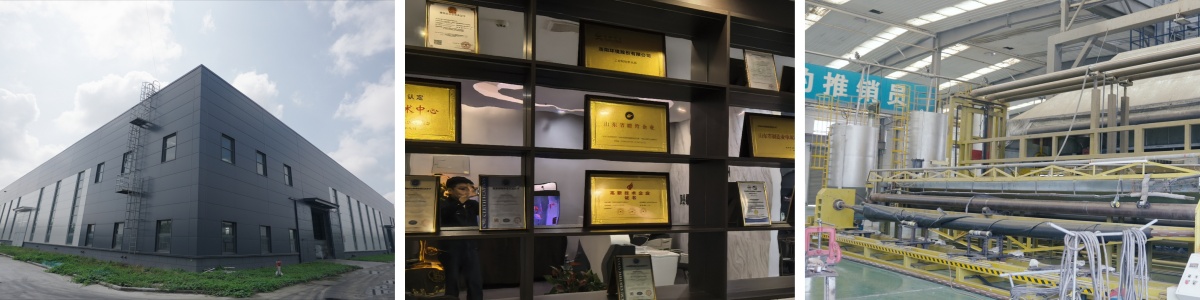

We are a leading manufacturer specializing in high-performance geosynthetic products, including HDPE geomembranes, geotextiles, and drainage composites. With ISO 9001-certified production facilities and 20+ years of industry experience, we provide reliable, cost-effective containment solutions for environmental protection, water conservation, and civil engineering projects worldwide.

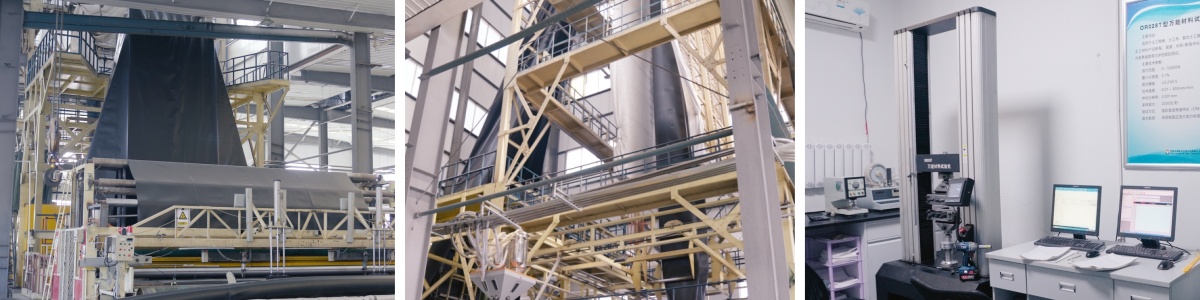

Our advanced manufacturing capabilities enable us to produce 2.0mm single textured HDPE geomembranes with precise thickness control (±0.05mm) and consistent surface texture for optimal friction performance. We utilize 100% virgin HDPE resin with UV stabilization to ensure long-term durability in harsh environments.
