Enhanced Slope Stability: Textured surface (0.25-0.5mm asperity height) provides 30% higher interface friction vs smooth liners, ideal for steep slopes (up to 1:1 gradient).
Superior Shear Resistance: 1.5-2× improved shear strength prevents liner slippage on landfill caps, reservoir berms, and mining heap leach pads.
Chemical Resistance: Withstands pH 1-14, leachates, and hydrocarbons (ASTM D5322 tested).
Installation Benefits: Textured side bonds securely with geotextiles/soils while smooth side allows standard welding.
Introduction

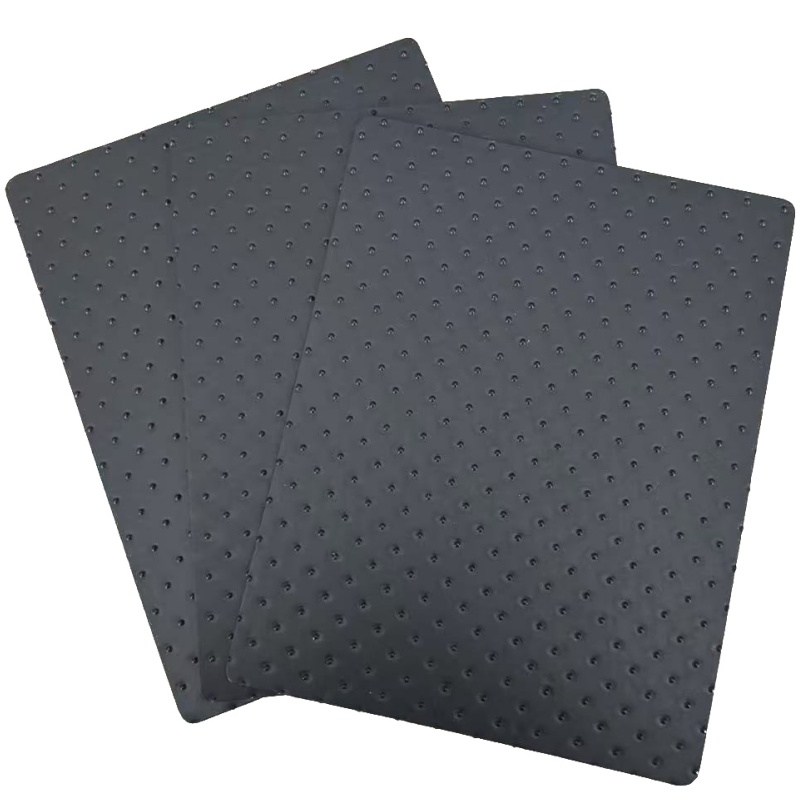

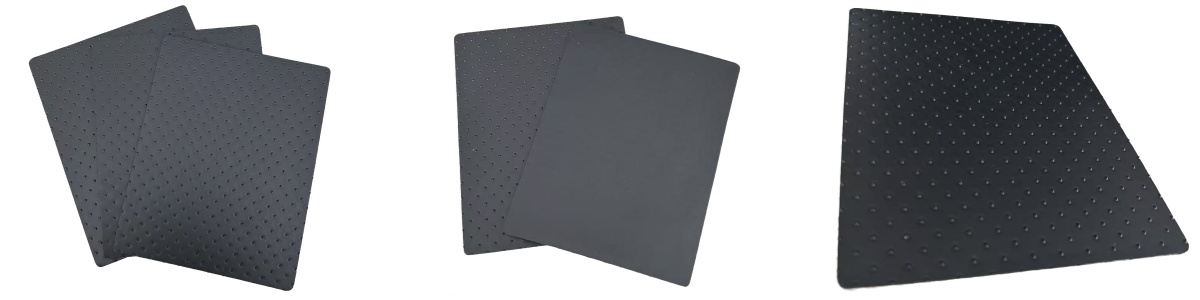

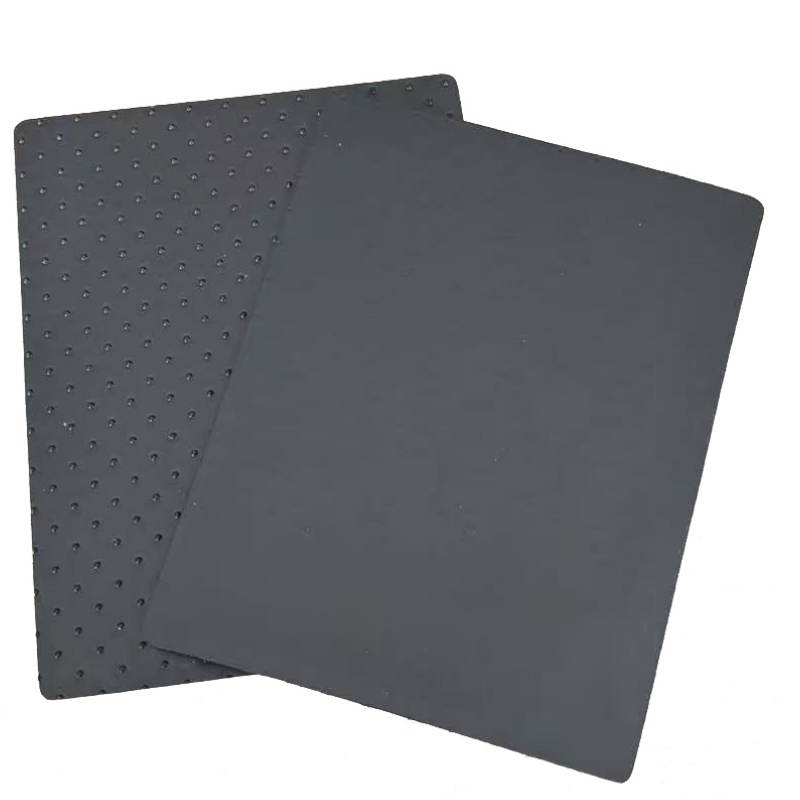

Haoyang Single Textured Geomembrane Liner is a high-density polyethylene (HDPE) geomembrane with a special rough texture on one side. The rough surface is formed with evenly distributed raised particles through an injection process (such as nitrogen spraying, embossing or chemical treatment), and the other side remains smooth.
Key Features
1. Single-sided high-friction rough surface, formed by nitrogen spraying or mechanical embossing process, has a significantly higher friction coefficient than the smooth surface, and is suitable for engineering scenarios that require anti-slip (such as slopes, tailings ponds).
2. Using the injection point process, compared with the traditional sand surface layer, the injection point rough surface is more uniform, not easy to fall off, and does not damage the strength of the geomembrane.
3. It has excellent chemical corrosion resistance, acid, alkali, oil, salt and organic solvent resistance.
4. High tensile strength, excellent puncture resistance, low permeability, ensuring anti-seepage reliability.
5. Adapt to various projects, the rough surface facing up can be used to combine with geotextiles, geogrids or covering soil to enhance interface friction; the smooth surface facing down can directly contact the foundation or support layer, which is convenient for welding construction.
Technical Specifications
| Parameter | Specification |
| Material | Virgin HDPE with 2-3% carbon black |
| Thickness | 1.0mm–3.0mm (±0.05mm tolerance) |
| Texture Depth | 0.25mm–0.5mm (customizable) |
| Width | 5m–8m (standard) |
| Tensile Strength | ≥25 MPa (ASTM D6693) |
| Peel Strength | ≥60 N/cm (ASTM D6392) |
| Shear Strength | ≥30 kN/m² (ASTM D5321) |
| Temperature Range | 40°C to +80°C |

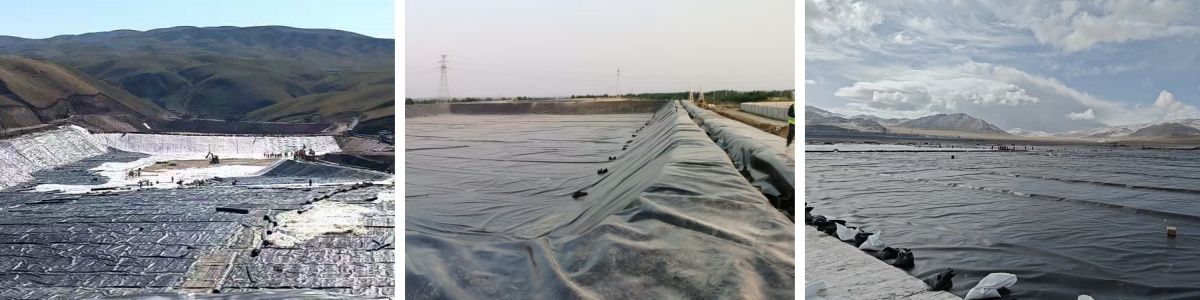

Primary Applications
1. Slope reinforcement (such as road slopes, tailings dams): The rough surface is combined with geogrids to prevent the overburden from sliding.
2. Artificial lake and reservoir anti-seepage: The smooth surface is used for welding, and the rough surface is used to enhance the bonding strength with the protective layer.
3. Oil and gas anti-seepage engineering: The rough surface is used to resist the upper load stress, and the smooth surface is used to fit the foundation.
Why Choose Our Textured Liner?
Factory-controlled texture consistency for reliable performance
Custom texture patterns (diamond, linear, random) available
Technical support for slope design & installation
Global project experience in extreme environments
Packaging & Delivery
Standard Rolls: Shrink-wrapped with protective ends
Palletized: 10–15 rolls per pallet
Fast Delivery: 15–30 days (stock available)
About Us:
Established in 2008, Haoyang Environmental Technology Co., Ltd. has grown into a leading global manufacturer of high-quality geosynthetic products. Headquartered in Jinan, Shandong Province, China, we specialize in the research, development, and production of advanced geomembranes, geotextiles, and related environmental engineering materials.
