Multi-Directional Strength - Provides balanced reinforcement in both longitudinal and transverse directions.
Uniform Load Distribution - Effectively spreads stresses across entire reinforced area.
Base Stabilization - Enhances pavement performance and extends service life.
Material Compatibility - Works effectively with various fill materials.
Construction Efficiency - Simplifies the installation process for faster project completion.
Product Introduction:

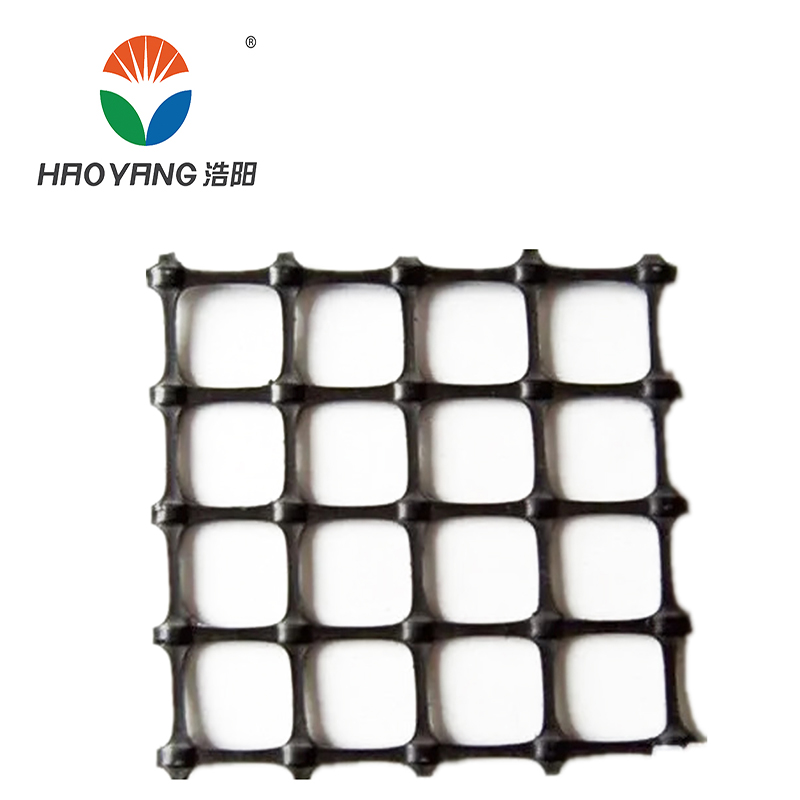

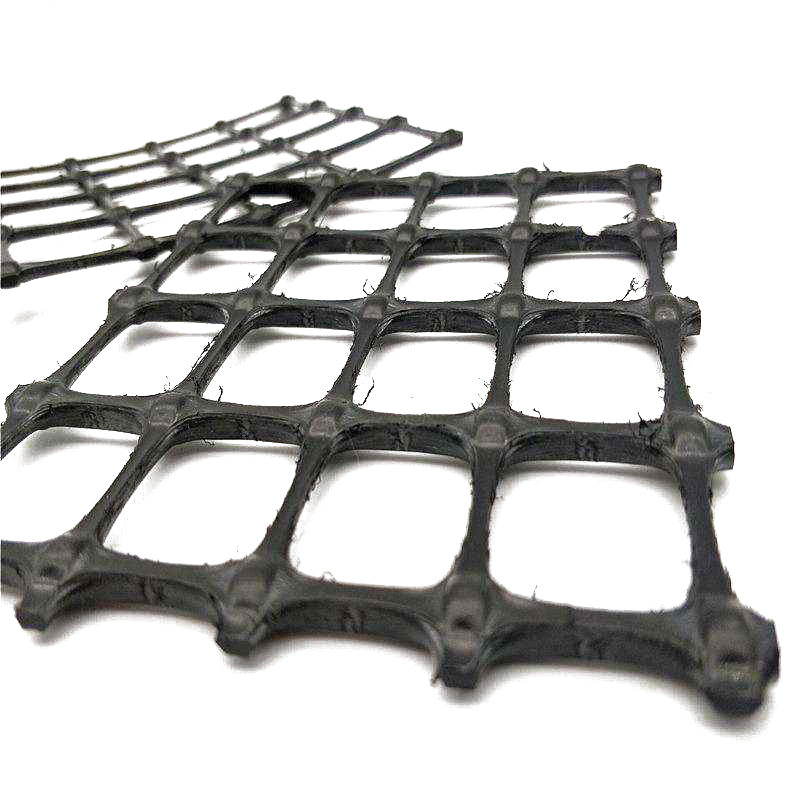

Bidirectional tensile plastic geogrids are made by extruding polymers into sheets, perforating, and stretching them in both directions. This creates a strong, durable grid perfect for soil stabilization, road reinforcement, and foundation support, providing balanced strength for reliable engineering solutions.
Product Features:
1. Efficient Construction: Simplifies construction, saving time and labor, shortening the project duration, and reducing maintenance costs.
2. Cost Savings: Reduces the thickness of bedding layers, lowering material and construction costs.
Product Applications:
1. Enhanced Load-Bearing Capacity: Increases the bearing capacity of roadbeds and foundations, extending their service life.
2. Surface Protection: Prevents road or ground surfaces from collapsing or cracking, maintaining a neat and attractive appearance.
3. Soil Slope Reinforcement: Enhances soil slopes and prevents erosion.
4. Slope Stability and Greening: Supports slope grass mesh mats, promoting environmental greening and stability.
5. Versatile Replacement: Can replace metal mesh for use in coal mine underground false roof nets.
Product Parameters:
Projeot | Tenaile Strangth KN/m | Elongation Rates | Tensile Strength with | Tensile Strength with 5%Srain | ||||
Longitudinal | Traverse | Longitudinal | Traverse | Longitudinal | Traverse | Longitudinal | Traverse | |
105015-15 | ≥15 | ≥15 | ≤13 | ≤16 | ≥5 | ≥7 | ≥8 | ≥10 |
105020-20 | ≥20 | ≥20 | ≤13 | ≤16 | ≥8 | ≥10 | ≥10 | ≥13 |
165625-25 | ≥25 | >25 | ≤13 | ≤16 | ≥8 | ≥11 | ≥11 | ≥13 |
16S030-30 | ≥30 | ≥30 | ≤13 | ≤16 | ≥11 | ≥13 | ≥15 | ≥15 |
165635-35 | ≥35 | ≥35 | ≤13 | ≤16 | ≥12 | ≥14 | ≥15 | 18 |
T05040-40 | ≥40 | ≥40 | ≤13 | ≤16 | ≥13 | ≥15 | ≥10 | ≥20 |
Business Strength:
Haoyang Environmental Technology (Shandong) Co., Ltd. provides custom-width geomembranes (up to 10 meters) to reduce installation time and welding seams in large projects.
