High Tensile Strength - Exceptional load-bearing capacity in the primary strength direction.
Creep Resistance - Maintains structural integrity under sustained loads.
Soil Reinforcement - Significantly improves bearing capacity of weak subgrades.
Puncture Resistance - Withstands installation stresses and long-term service conditions.
Cost-Efficient Reinforcement - Reduces required fill material thickness in constructio.
Product Introduction:

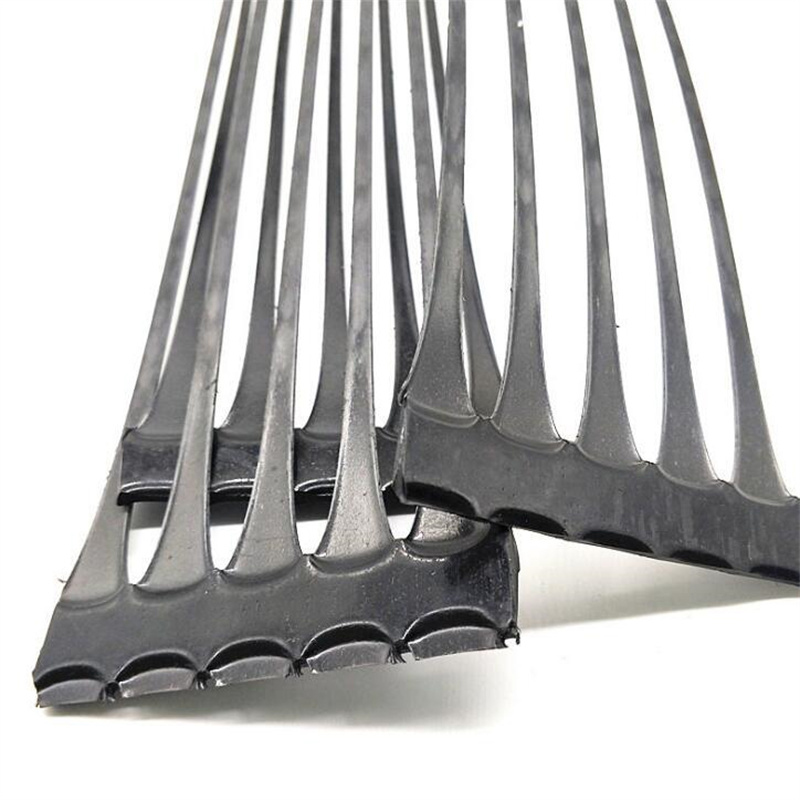

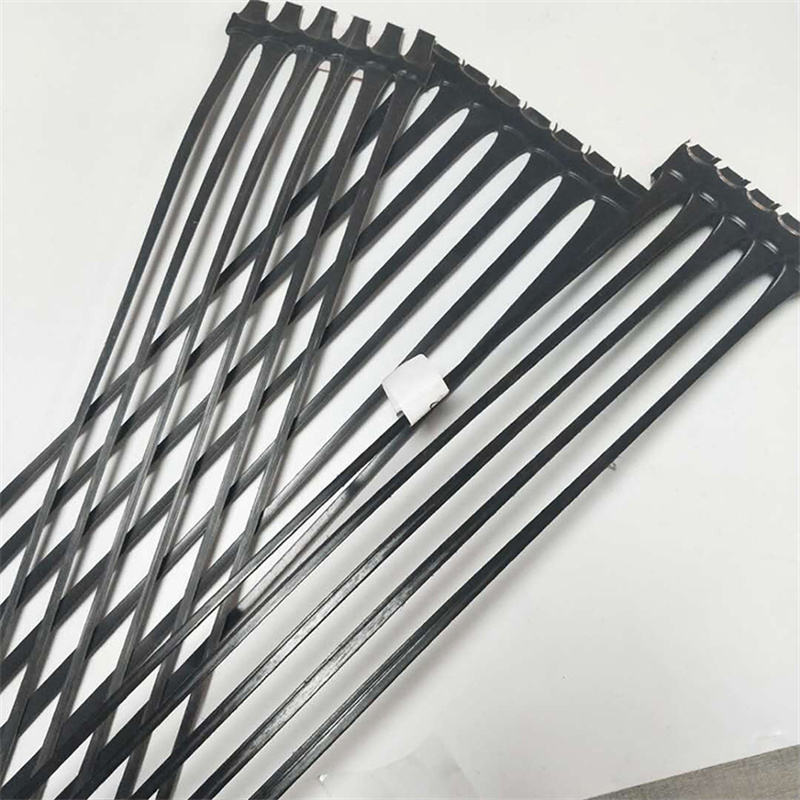

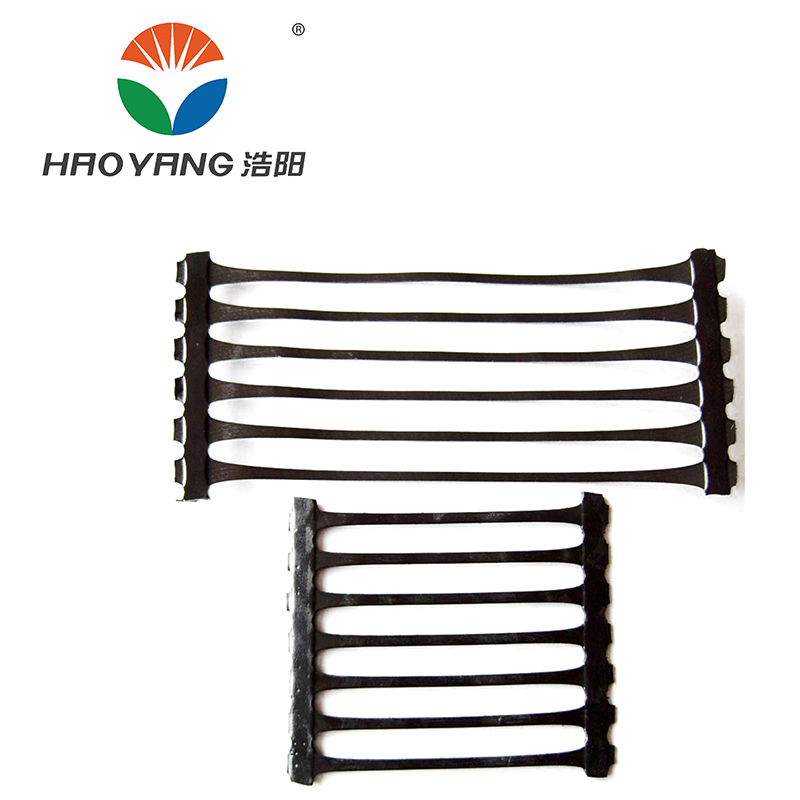

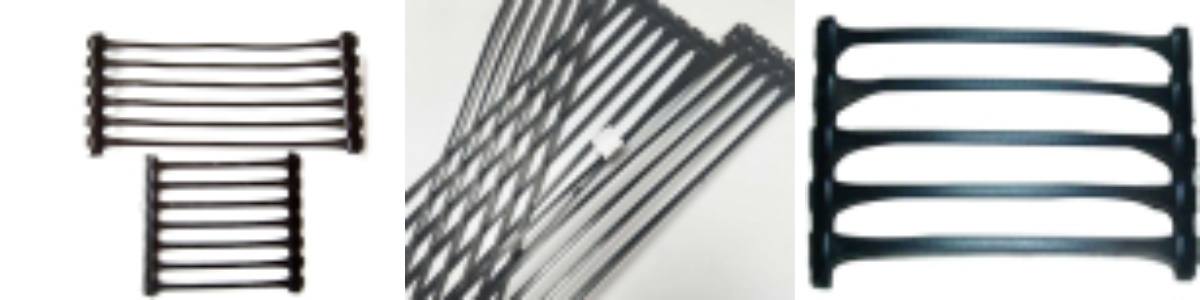

Unidirectional tension plastic geogrid is made by extruding polymer into thin sheets, punching holes, and stretching longitudinally. This high-strength grid is ideal for soil reinforcement, slope stabilization, and retaining walls, offering excellent tensile strength and load distribution for civil engineering projects.
Product Features:
Creep Performance: Superior creep resistance to prevent deformation
Structural Capacity: High tensile strength for structural integrity
Longevity Assurance: Exceptional durability against aging
Reliable Performance: Ensuring long-term stability in demanding conditions
Ease of Construction: Simple and fast installation, significantly reducing construction costs.
Product Applications:
1. Roadbed Reinforcement: Effectively distributes load, enhances roadbed stability and bearing capacity, and extends service life.
2. Load Resistance: Withstands greater alternating loads, improving durability.
3. Prevention of Roadbed Damage: Prevents material loss, cracking, and deformation of the roadbed.
4. Retaining Wall Support: Increases self-supporting capacity of fill behind retaining walls, reduces wall pressure, and lowers construction and maintenance costs.
5. Slope Maintenance: Combined with shotcrete anchoring, saves 30%-50% of investment and reduces construction time by more than half.
6. Highway Applications: Reduces bending subsidence, minimizes rutting, delays crack formation by 3-9 times, and decreases structural layer thickness by up to 36%.
7. Versatility in Soils: Suitable for various soil types, eliminating the need for external materials and saving labor and time.
Product Parameters:
| Item | Tensile Strength KN/m | Elongation Rate% | Tensile Strength with 2%Srain KN/m | Tensile Strength with 5%Srain KN/m |
| TGDG35 | ≥35 | ≤10 | ≥10 | ≥20 |
| TGDG50 | ≥50 | ≤10 | ≥12 | ≥28 |
| TGDG80 | ≥80 | ≤10 | ≥26 | ≥48 |
| TGDG110 | ≥110 | ≤10 | ≥32 | ≥64 |
| TGDG120 | ≥120 | ≤10 | ≥38 | ≥74 |
Business Strength:
Haoyang Environmental Technology (Shandong) Co., Ltd. promotes eco-friendly geosynthetics to reduce environmental impact in construction projects.
