High-Efficiency Drainage – Rapid water diversion with superior anti-clogging performance.
Lightweight Durability – High-strength polymer with optimal weight-to-performance ratio.
Modular Design – Quick interlocking installation with adjustable configurations.
Chemical Resistance – Resists corrosion from salts, acids, and organic degradation.
Low Maintenance – Smooth inner walls minimize sediment accumulation.
Product Introduction:

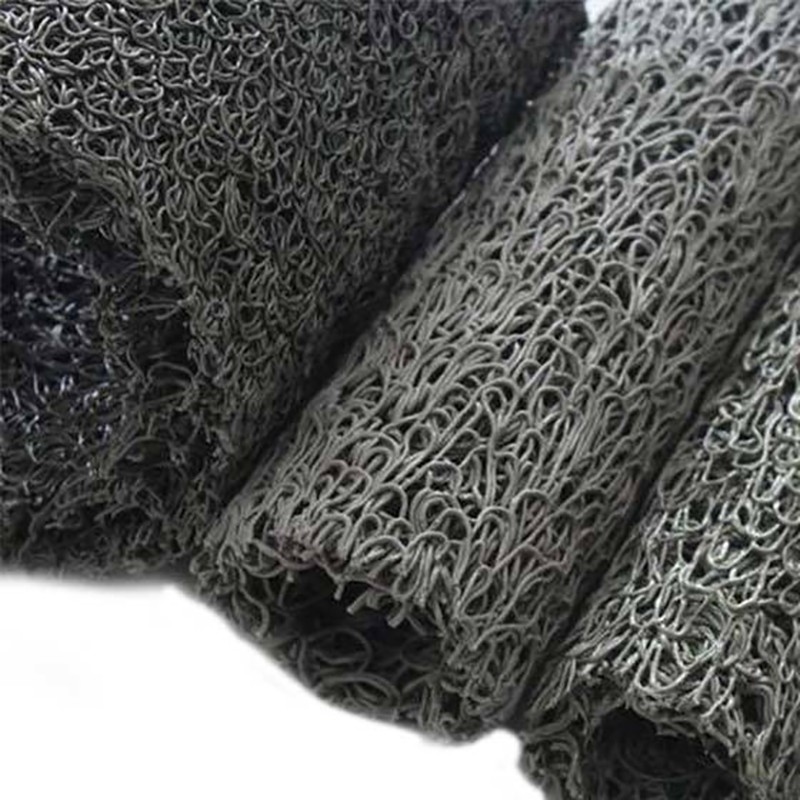

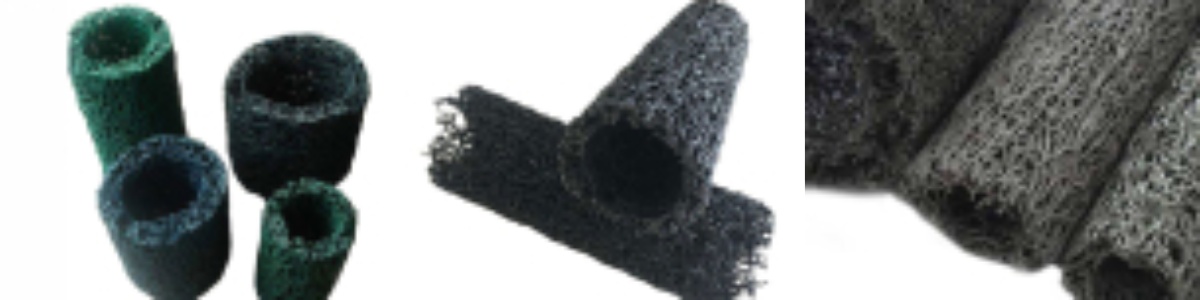

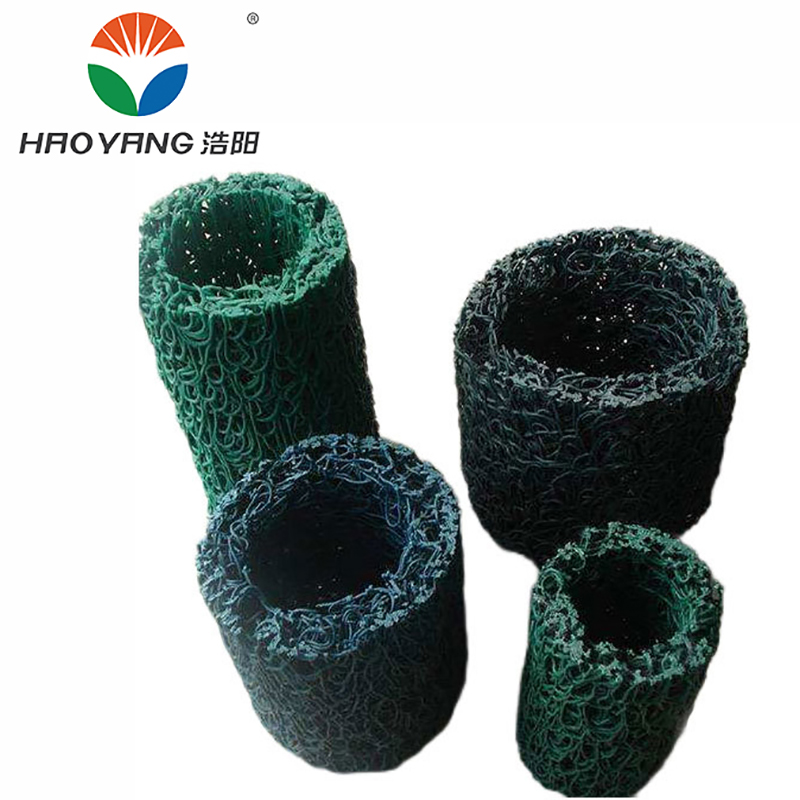

Plastic blind ditch consists of a plastic core wrapped with a filter cloth, designed to provide efficient drainage and filtration. Its durable and lightweight structure makes it ideal for applications such as agricultural drainage, road construction, and landscape projects, ensuring effective water management and long-term performance.
Product Features:
1. Structure and Design – Composed of fibers about 2mm thick, fused into a three-dimensional mesh structure, with a surface open area of 95-97%, ensuring high water absorption.
2. High Void Rate and Strength – Features a void rate of 80-95%, providing lightweight yet strong compressive performance, with residual void remaining above 50% even under overload to prevent water flow interruption and eliminate concerns about earth pressure crushing.
3. Compressive Strength – Withstands 250 kPa pressure with less than 10% compression rate.
4. Durability – Contains anti-aging agents, ensuring stability for decades in water, soil, and other harsh environments.
5. Flexibility and Lightweight – Flexible enough for curved roads and lightweight for easy installation, allowing backfilling with bulldozers at depths of around 10 cm.
6. Problem Solving – Addresses common issues like uneven settlement, overloading, and occlusion in traditional blind drains, ensuring continuous and reliable functionality.
7. Durable Construction – Molded by hot melting without binders, preventing collapse due to binder aging or peeling, ensuring long-term structural integrity.
Product Applications:
1. Highway and Railroad Roadbed Shoulder Reinforcement: Provides drainage and reinforcement for roadbed shoulders.
2. Tunnels and Underground Structures: Ensures drainage in tunnels, subways, underpasses, and underground freight yards.
3. Soil and Water Conservation: Manages drainage for hillside land and slope development to prevent erosion.
4. Retaining Wall Drainage: Offers vertical and horizontal drainage for various retaining walls.
5. Slippery Land Drainage: Prevents water accumulation on slippery slopes.
6. Industrial and Landfill Drainage: Handles drainage for thermal power plant ash piles and landfill projects.
7. Sports and Recreational Areas: Ensures proper drainage for sports fields, golf courses, baseball fields, soccer fields, and parks.
8. Roof Gardens and Flower Beds: Provides drainage for roof gardens and flower beds.
9. Building Foundations: Manages drainage during building foundation construction.
10. Agricultural and Horticultural Irrigation: Supports underground irrigation and drainage systems for agriculture and horticulture.
11. Low-Lying and Wetland Drainage: Addresses drainage for low-lying wet areas and land preparation projects.
Product Parameters:
| Model Item | Orbicular | ||||||
| Multiple external dimensions ≥ | 50 | 80 | 100 | 150 | 200 | ||
| Hollow size | 30 | 50 | 60 | 90 | 140 | ||
| Weight g/m≥ | 320 | 750 | 1000 | 1500 | 2500 | ||
| Void ratio % | 75 | 80 | 80 | 80 | 80 | ||
| Compressive Strength kpa | Flatness5%≥ | 85 | T5 | 65 | 50 | 45 | |
| Flatness10% | 170 | 140 | 110 | 80 | 70 | ||
| Flatness15%> | 210 | 160 | 160 | 100 | 90 | ||
| Model Item | Orbicular | ||||||
| Multiple external dimensions | 70*35 | 120*35 | |||||
| Hollow size ≥ | 7O*10 | 40*10*2 | |||||
| Weight g/m≥ | 430 | 430 | |||||
| Void ratio % | 82 | 82 | |||||
| Compressive Strength | Flatness5%≥ | 70 | 60 | ||||
| kpa | Flatness10%> | 100 | 90 | ||||
| Flatness15%> | 160 | 130 | |||||
| Flatness15% | 220 | 180 | |||||
Business Strength:
Haoyang Environmental Technology (Shandong) Co., Ltd. aims to expand its production capacity to meet growing global demand for geosynthetics.
